超低功耗PMU，帶有16V線性充電器和5V升壓轉(zhuǎn)換器

　　Ultra Low Power PMU with 16V Linear Charger and 5V Boost Converter

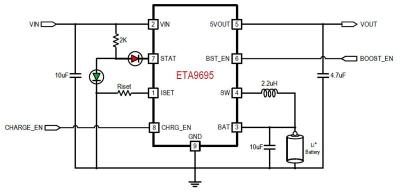

　　ETA9695 is an ultra low power PMU with 2 channels: a 16V single cell Li+ battery linear charger and a 5V Boost synchronous converter with true-shutoff function. The linear charger is fully integrated with constant current (CC) / constant voltage (CV) control module and charge FET, with minimal external devices. It also has pre-charge function for charging...

　　Features

　　Ultra Low IQ when Standby, Ibat<5uA

　　16V Input Standoff Voltage

　　4.2V Charge Termination Voltage

　　Charge Current Programmable, Up to 1.2A

　　Output Disconnect and SCP at 5V Output

　　5V/0.4A Output Power

　　Up to 94% Efficiency for Boost Converter

　　Functioning with NO BATTERY

　　Logic Control Shutdown and Thermal Shutdown

　　ESOP8 Package

　　Applications

　　TWS BT earbuds charge case

　　Bluetooth application

　　Battery powered IOT module

　　Power bank
