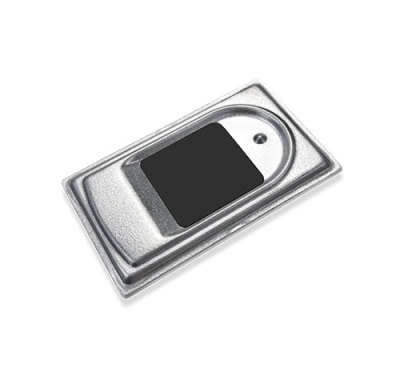

The capacitive fingerprint scanner module ID1019 is a high-performance capacitive fingerprint module developed by IDWorld for various embedded devices such as fingerprint locks and safes. The module integrates the functions of fingerprint collection, image processing, feature extraction, fingerprint registration, fingerprint comparison, and fingerprint deletion.

　　parameter:

　　Item model number: ID1019

　　CPU: ID811/812

　　Fingerprint capacity: 200/500/1000

　　Sensor Type: Capacitive

　　Effective acquisition window: 9.6*9.6mm

　　Image size: 192*192pixel

　　Image Resolution: 508dpi

　　Processing speed: 1:N comparison time (200 pieces) < 0.6 seconds

　　Alignment method: 1:N and 1:1 alignment

　　False Recognition Rate (FAR): < 0.001 % (Security Level is 3)

　　Authenticity rejection rate (FRR): < 2% (Security Level is 3)

　　Communication interface: UART, 3.3V-TTL level

　　Baud rate: The baud rate is 9600--115200 (bps) Factory setting: 115200bps

　　Template size: < 448 bytes

　　Operating System: Windows/Android

　　Working voltage: 3.3V

　　Working current: <40mA

　　Operating temperature: -20 °C ~ 55 °C

　　Working humidity: 20%-90% R.H

　　The capacitive fingerprint scanner module ID1019 module has been widely used in many fields such as fingerprint door locks and safes.
