Specification:
Hardware:
| CPU | MSTAR-MSD7805(128 pin) MIPS 34Kf@600MHz |
| Memory | 32X16Mbit DDR2 Frequency1066 |
| Flash | 32M bytes |
| Demodulator Type | ISDB SOC Chip Set |
| TUNER | Rafael R850 |

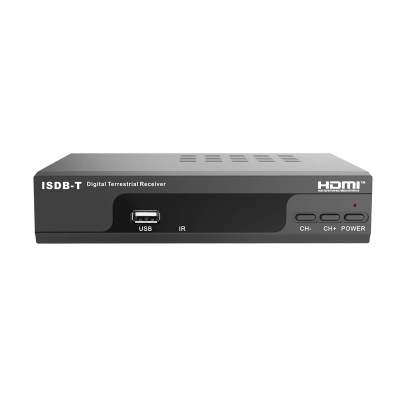

| Front Panel | USB 2.0 Embedded One Host, |
| 4-digit LED display on front panel |
| red LED Standby,green LED Lock |
| Panel KEY, POWER, CH+ ,CH- |
| Rear Panel | Tuner RF input connector EC-type IEC169-2 Female |
| Tuner RF Loop through connector IEC-type IEC169-24 Male |
| HDMI V1.3/V1.4 |
| RCA CVBS AL AR Connector x1 |
| Ypbpr RCAx1 |
| Coaxial x1 |
| Power AC100~240V 50Hz/60Hz |
Demodulation:
| Terrisal Receiver Standard | ISDB-T broadcast (1, 3, 13 segment) |
| Input RF Frequency | VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz. |
| Bandwidth | 6MHz |
| Demodulation | QPSK / 16QAM / 64QAM/QPSK or DQPSK |
| FEC | 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic |
| Guard Interval | 1/4,1/8,1/16,1/32 |
| FFT Mode | 2K/ 8K/32K |
| Input level | -83 - -5dBm |
Sortware Features:
•Used for any ISDB-T countries like Brazil, Peru, Argentina,Chile,Venezuela,PhilippinesEcuador
•Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant
•Support 3D interface
•Support teletext/subtitle/muti-language
•Supported 7-Day EPG function, VBI Teletext
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
Decoder:
| Video Decoder | Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 |
| MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) |
| MPEG-2 Main Profile# Main Level(15Mbps) |
| H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) |
| Audio Decoder | MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA |
| E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding |
Powerful Multimedia Features:
| MediaCodec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc |
| Audio Codec | WMA,MP3,AAC (.wma,.mp3,m4a) |
| Photo Codec | JPEG, BMP, PNG |
Multimedia License:
Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License.
Accessories:
| Accessories | gift box |
| AV cable |
| HDMI cable optional |
| IR remote control |
| User Manual |
